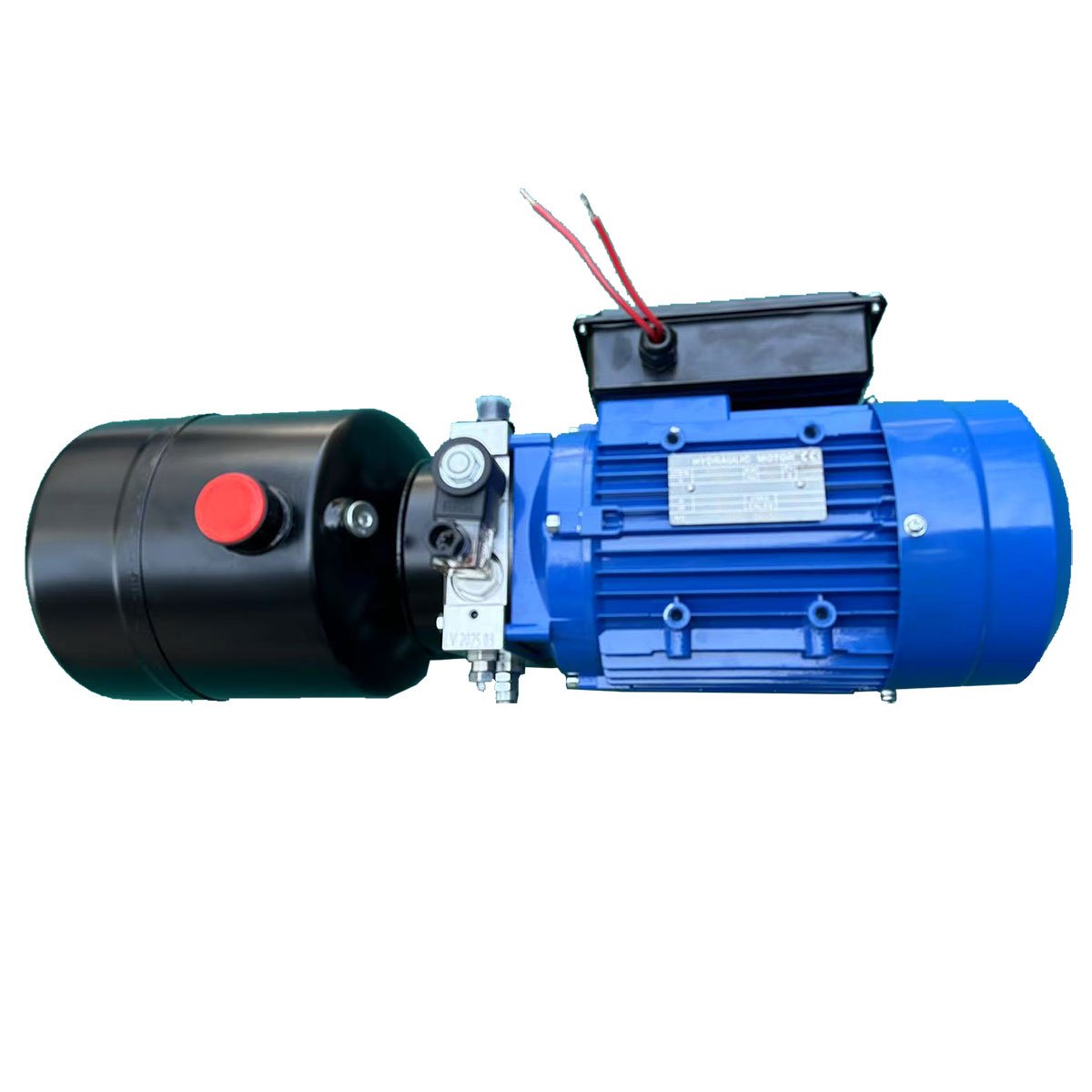

220V, 230V, 240V Unidirectional Hydraulic Power Unit

220V/230V/240V Unidirectional Hydraulic Power Unit

Product Overview

Key Features

• Unidirectional Hydraulic System:
  • Integral check valve prevents backflow, ensuring safe operation and protecting components from reverse pressure.
  • Adjustable relief valve (0–25MPa) for precise pressure regulation in single-path circuits.
• Global Voltage Compatibility:
  • Supports 220V/230V/240V ±10% input (single-phase, 50/60Hz), ideal for low-voltage grids in Europe, Asia, and Oceania.
• High-Efficiency Performance:
  • IE3-class motor paired with a low-pulsation gear pump achieves ≥88% hydraulic efficiency, reducing energy loss.
• Rugged Construction:
  • Enclosed steel casing with IP54 protection resists dust and water splashes; thermal overload protection prevents overheating.
• Modular Design:
  • Standard SAE/ISO flange connections for quick integration with cylinders, valves, and control systems.

Hydraulic System Benefits

• Smooth Unidirectional Motion: Consistent flow ensures jerk-free operation for lifting, pressing, or conveying tasks.
• Low Maintenance: Self-lubricating oil reduces wear; oil change interval up to 3000 hours.
• Safety Integration: Overpressure protection and backflow prevention enhance system reliability.

Application Scenarios

• Industrial Machinery:
  • Presses, shears, and forming equipment requiring single-directional force.
• Material Handling:
  • Conveyor lifts, pallet stackers, and loading dock levelers.
• Automation & Robotics:
  • Single-axis hydraulic actuators in production lines and robotic arm supports.
• Construction & Agriculture:
  • Mobile hydraulic tools, small-scale machinery, and equipment attachments.
