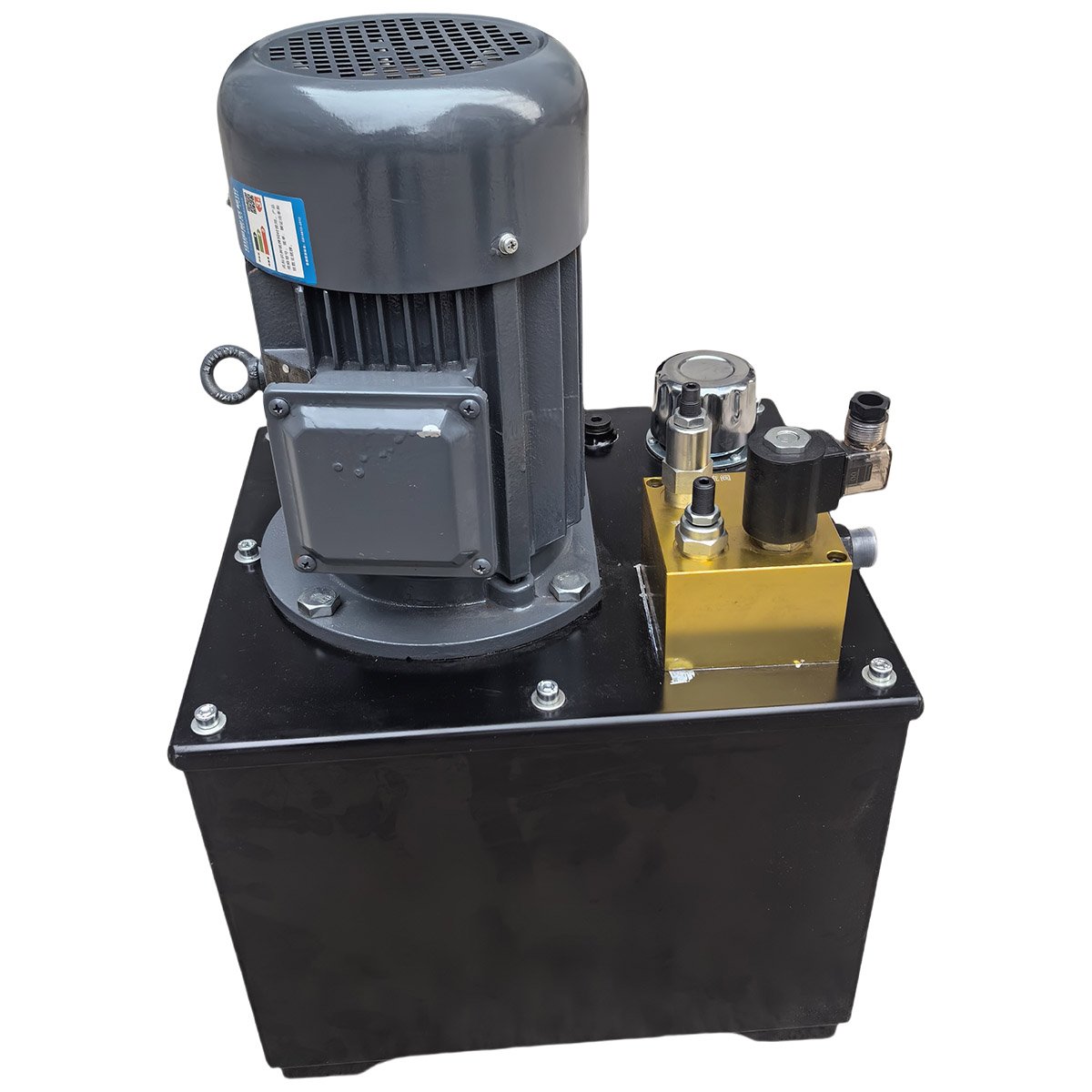

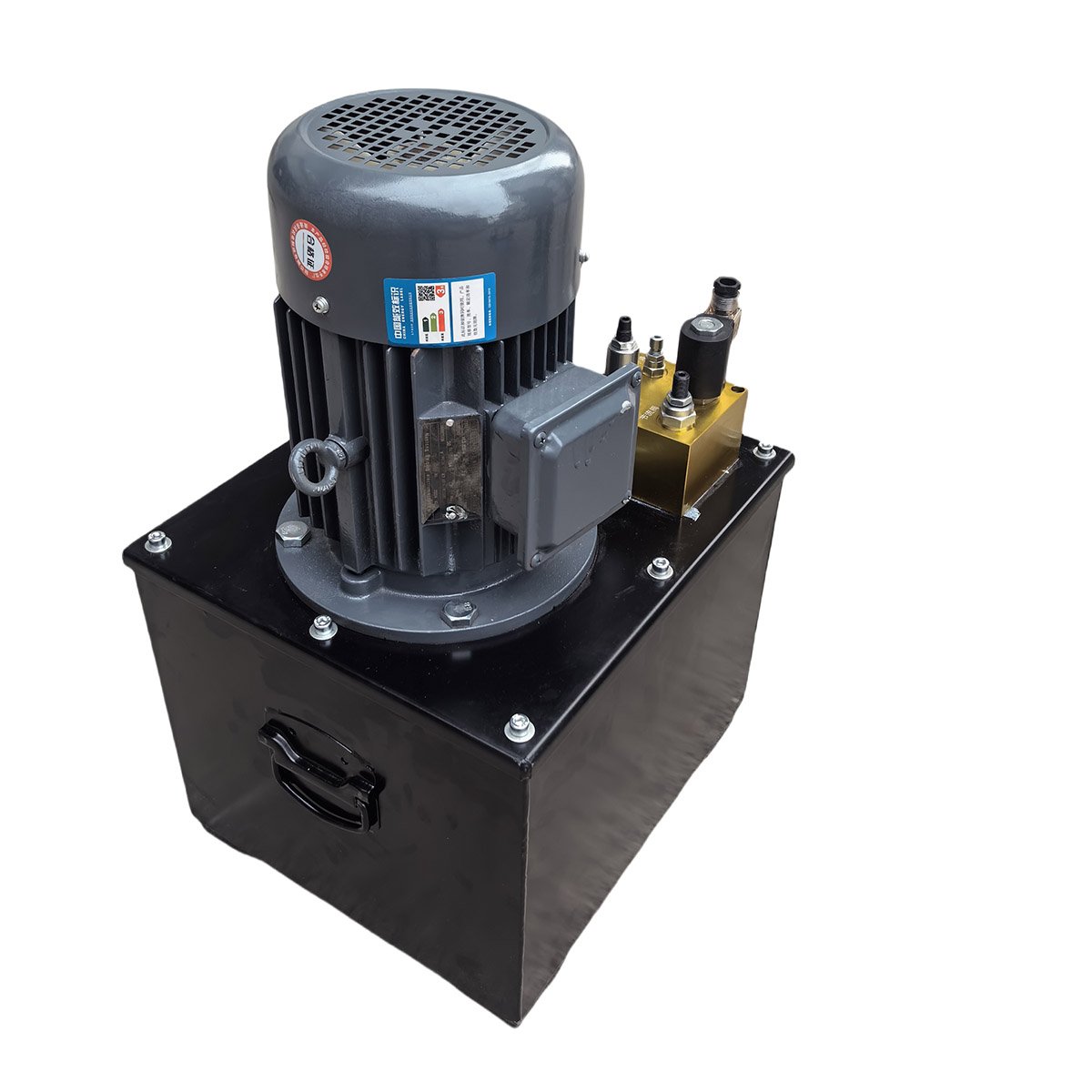

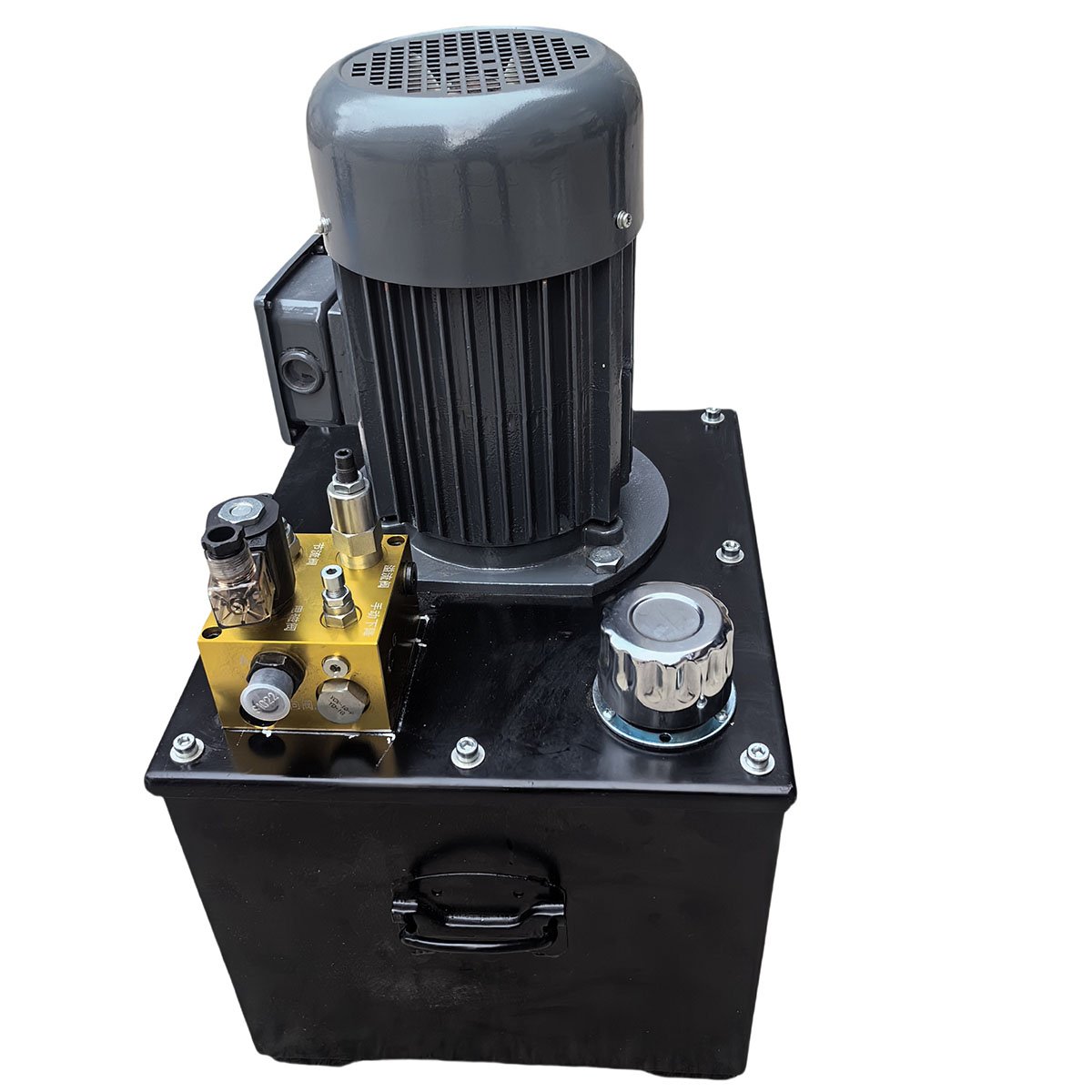

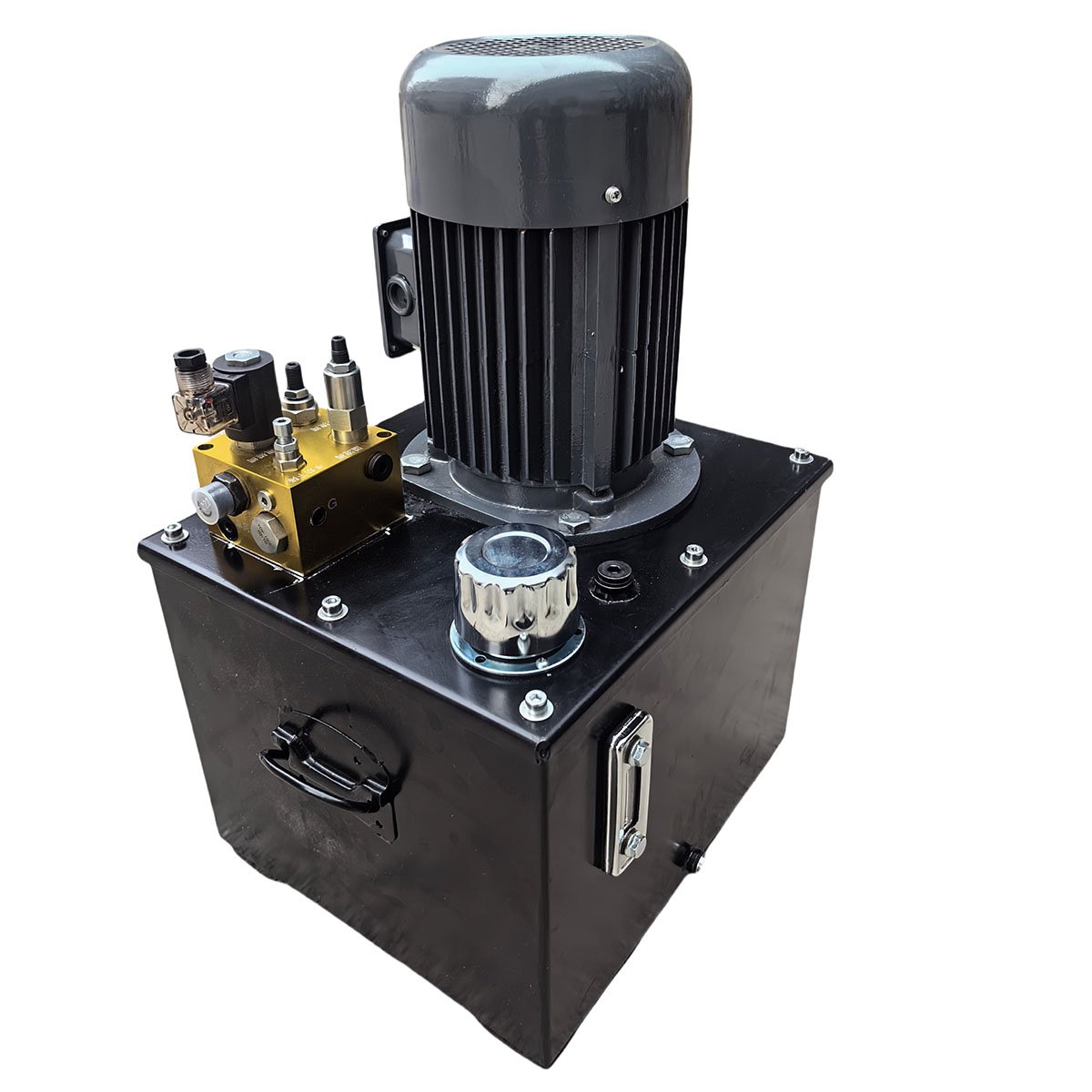

Engineered for heavy-duty cargo transportation, this freight elevator pump station delivers reliable hydraulic power to support high-load lifting and lowering operations. Designed to withstand continuous duty cycles in industrial environments, the system combines robust performance with safety-critical features for optimal cargo handling efficiency.
- High-Load Capacity:
- Supports elevator loads up to 5000kg (11,000lbs) with hydraulic pressure up to 28MPa (4060psi), ideal for warehouse, logistics, and manufacturing applications.
- Durable Industrial Design:
- Cast iron pump housing and stainless steel components resist corrosion in harsh warehouse environments (humidity, dust, and debris).
- Heavy-duty IE3 motor (5.5kW–15kW) with thermal overload protection for continuous 24/7 operation.
- Precision Flow Control:
- Proportional pressure valves enable smooth start/stop and speed regulation (0.1m/s–0.6m/s), minimizing cargo sway during transport.
- Unidirectional/check valve design prevents backflow, ensuring safe load holding during power outages.
- Safety Integrations:
- Emergency lowering valve for manual descent in power failure; overload protection (auto-shutdown at 110% rated load).
- Pressure relief valves and explosion-proof seals (where applicable) meet EN 81-20 elevator safety standards.
- Easy Maintenance:
- Front-accessible filter cartridges and oil level indicators; quick-disconnect fittings for reduced servicing downtime.
| product name | Freight elevator hydraulic station, hydraulic station/hydraulic system, hydraulic system and device, hydraulic pump station |
| Applicable Medium | 46#Hydraulic oil | unit price |
| Specification and model | 380V3KW40L | 1500Yuan |
| 380V4W60L | 1900Yuan |
| 380V5.5KW80L | 2400Yuan |
| 380V7.5KW80L | 2600Yuan |
| 380V11KW100L | 4000Yuan |
| Rated flow rate | 22L-70L |
| product material | copper |
| Product Performance | stable performance |
| Application scope | Elevators, freight elevators, lifts, loading platforms, handling equipment, mechanical equipment |
