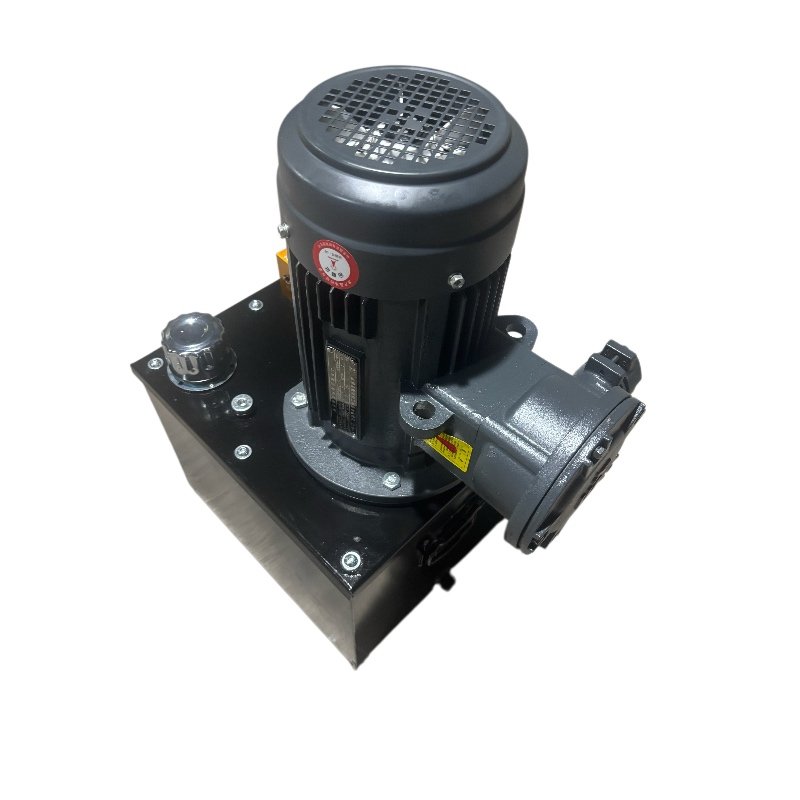

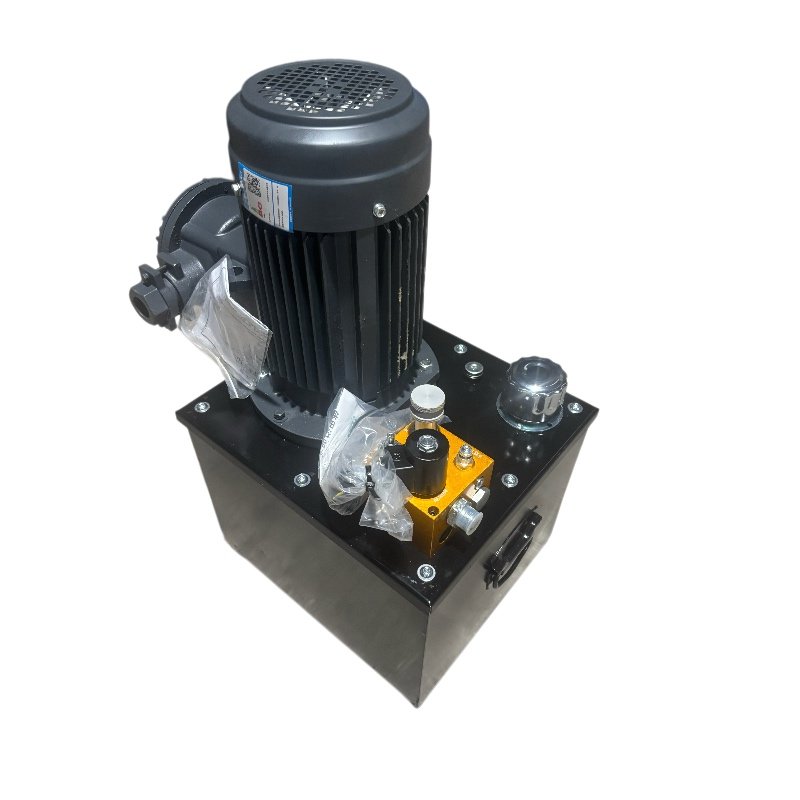

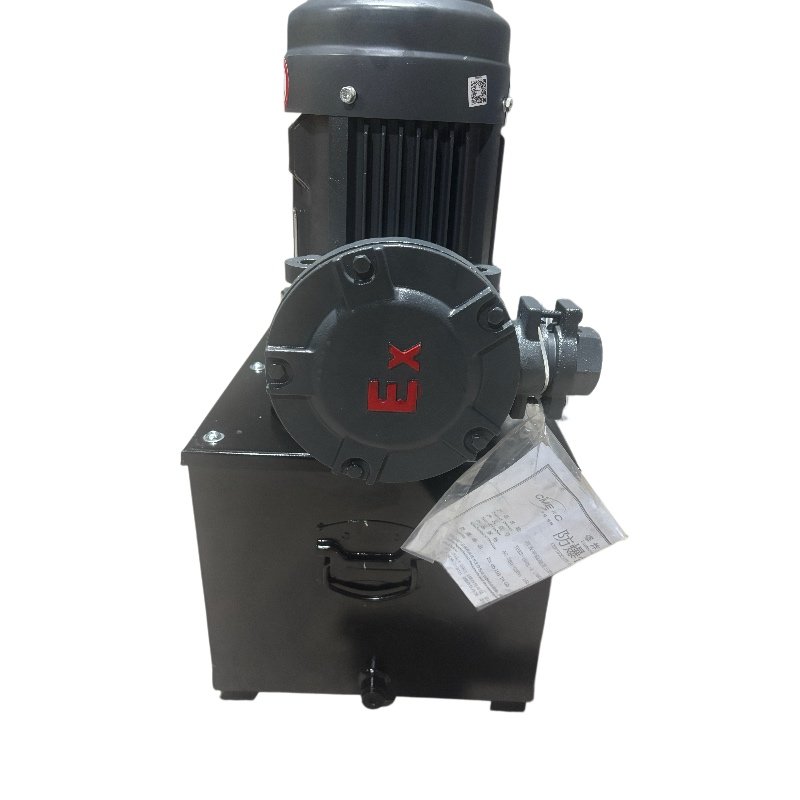

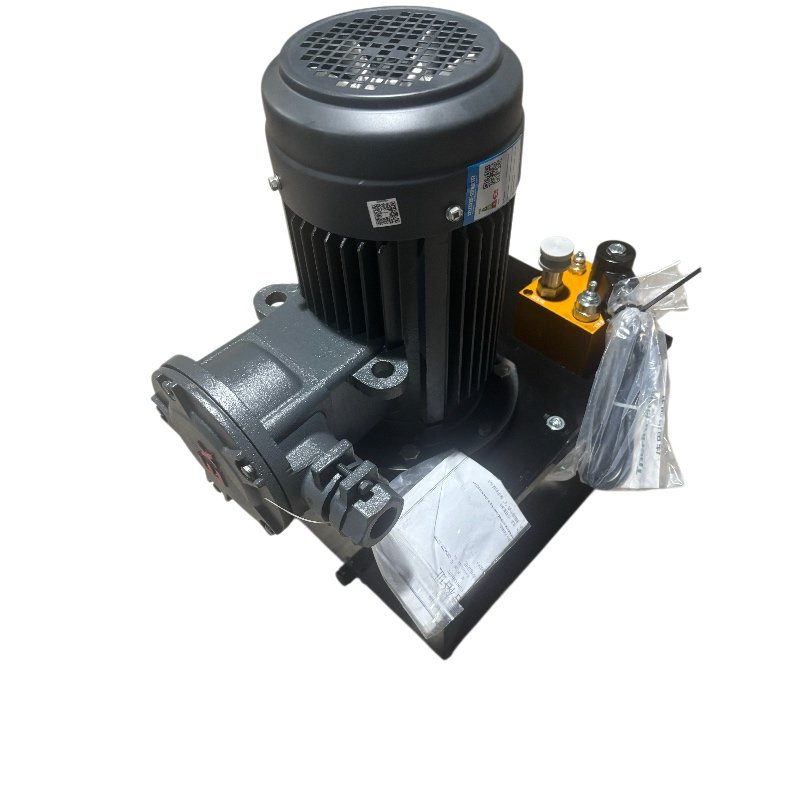

This explosion proof hydraulic power unit is specially designed for hydraulic freight elevators and lifting equipment operating in hazardous environments where safety and reliability are required. The system features a 2.2kW explosion proof motor, hydraulic pump, precision valve block and a durable 40L steel oil reservoir.
With an 11L/min hydraulic flow rate và 10MPa working pressure, this hydraulic power unit provides stable lifting performance and reliable pressure control for cargo elevator applications. The explosion proof design helps meet the requirements of industrial environments where electrical safety is critical.
The hydraulic system configuration can be customized according to elevator load capacity, lifting height, working conditions, voltage requirements and control methods.
Main Features
- Explosion proof hydraulic power unit for freight elevators
- 2.2kW explosion proof AC motor
- 11L/min hydraulic flow rate
- 10MPa (100 Bar) working pressure
- 40L heavy-duty steel oil tank
- Stable operation in demanding industrial environments
- Reliable hydraulic pressure holding performance
- Customized hydraulic circuit and control system available
- OEM & ODM manufacturing support
Ứng dụng
- Explosion proof freight elevators
- Industrial cargo lifts
- Chemical plant lifting equipment
- Warehouse hydraulic elevators
- Hazardous area lifting systems
- Customized industrial hydraulic equipment
Thông số kỹ thuật
- Motor Power: 2.2kW
- Motor Type: Explosion Proof AC Motor
- Flow Rate: 11L/min
- Working Pressure: 10MPa / 100 Bar
- Oil Tank Capacity: 40L Steel Reservoir
- Application: Hydraulic Freight Elevator
- Voltage: AC220V / AC380V / Customized
